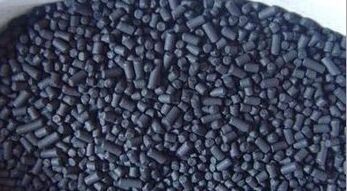

Nitrogen carbon molecular sieve (Carbon Molecular, Sieves, CMS) for air separation nitrogen enrichment, with normal temperature and low pressure nitrogen process, cryogenic high pressure nitrogen than the traditional technology with less investment, nitrogen production speed and low cost of nitrogen. As a result, it is the first choice of the engineering field of pressure swing adsorption (P.S.A), nitrogen adsorption, nitrogen in the chemical industry, oil and gas industry, electronic industry, food industry, coal industry, pharmaceutical industry, cable industry, metal heat treatment, transportation and storage, etc..
Product features:
The adsorption properties of strong.
The industrial output value is high.
The long service life.
The high hardness and low ash content, low abrasion.
The production cost is low.
The low energy consumption, low ratio of air and nitrogen
Quality index of carbon molecular sieve:
1 particle diameter 1.3 - 1.5mm
2 adsorption cycle 120S
3 reactor density of 680 ~ 700g/L
4 the compressive strength more than 95N/P.
| Technical parameters: |
| Type |
Adsorption Pressure |
Nitrogen concentration |
Nitrogen production Quantity |
N2/Air |
| (MPa) |
(N2%) |
(NM3/h.t) |
(%) |
| CMS-180 |
0.8 |
99.9 |
110 |
25 |
| 99.5 |
185 |
36 |
| 99 |
230 |
41 |
| 98 |
310 |
46 |
| CMS-200 |
0.8 |
99.9 |
130 |
26 |
| 99.5 |
200 |
35 |
| 99 |
260 |
40 |
| 98 |
330 |
46 |
| CMS-220 |
0.8 |
99.99 |
90 |
25 |
| 99.9 |
150 |
34 |
| 99.5 |
220 |
43 |
| 99 |
290 |
48 |
| 98 |
360 |
54 |
| CMS-240 |
0.8 |
99.99 |
100 |
26 |
| 99.9 |
160 |
35 |
| 99.5 |
240 |
44 |
| 99 |
300 |
49 |
| 98 |
370 |
55 |
